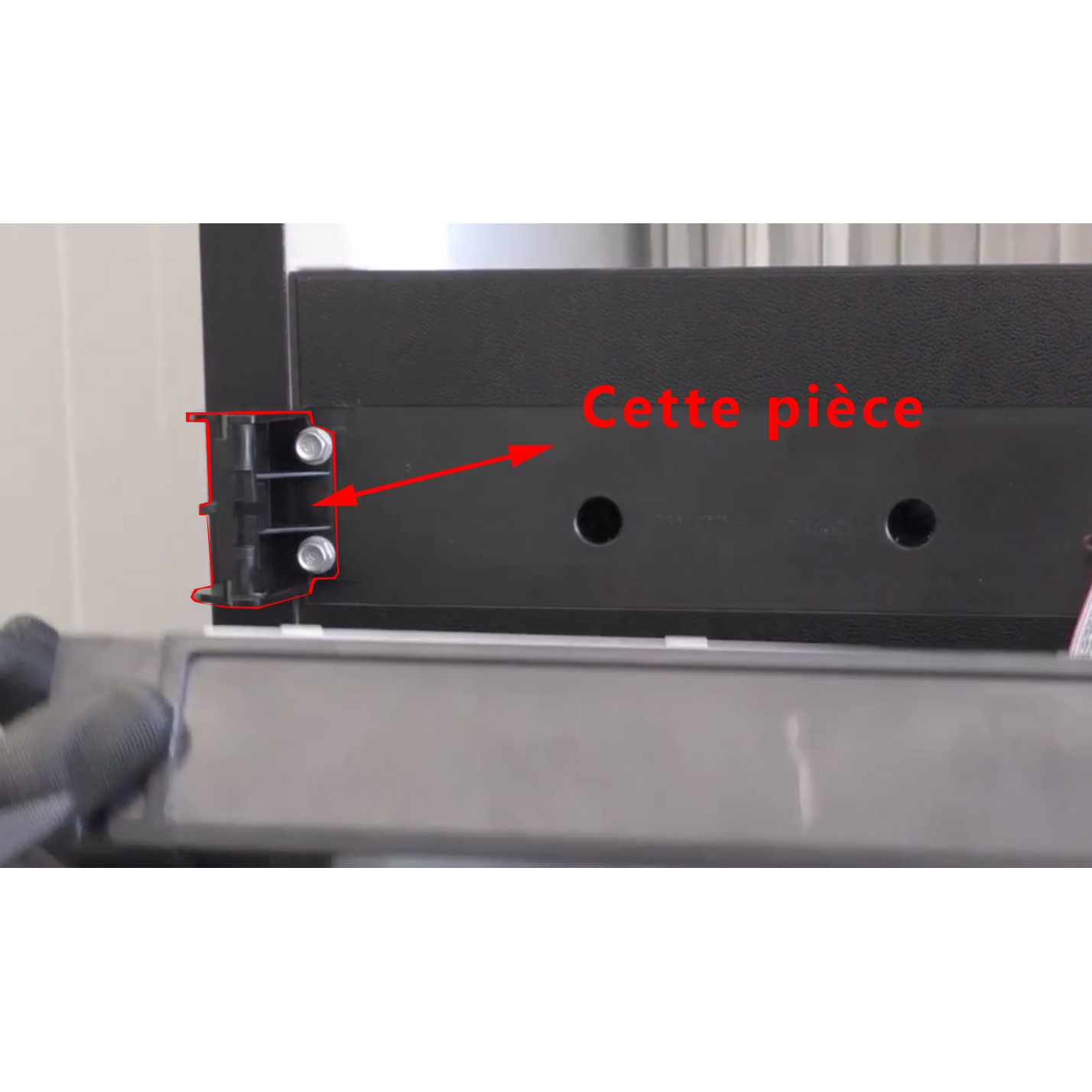

Paire de charnière des portes et fixation panneau de commande RMD10.5, RCD10.5, RMDT10.5 par Dometic

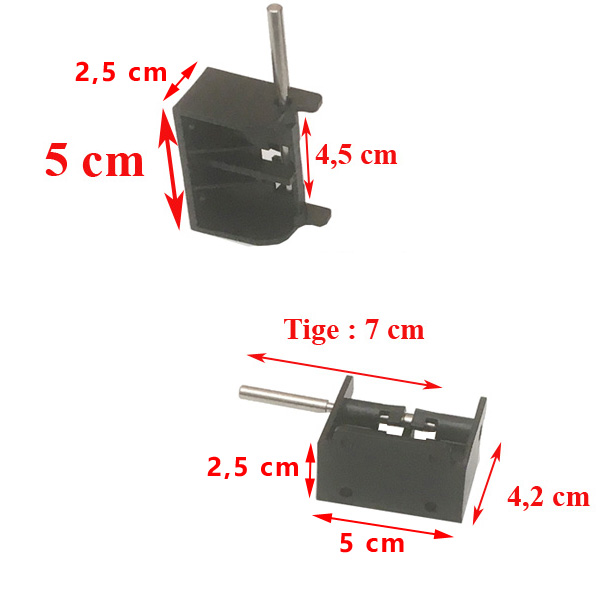

2 Charnières des portes qui sert en meme temps à fixer le bandeau ou le panneau de commande des RMD10.5  (voir ref EW734 pour la panneau de commande) par Dometic

pour les appareils suivants :

• RCD10.5T, RCD10.5XS, RCD10.5XT,
• RMD10.5, RMD10.5S, RMD10.5T, RMD10.5X, RMD10.5XS, RMD10.5XT,
• RMDT10.5, RMDT10.5T, RMDT10.5X, RMDT10.5XT

pièce origine constructeur, ref parts 289017707

Afin de pouvoir demonter cette piece il est necessaire de se procurer l’outil ref EW1082

(dans cette ref parts il y a ref parts 289074300 qu’on ne peut pas commander seul)

Si vous recherchez aussi les systemes de fermeture rectangulaire en métal jaune avec les ressorts et clips il faudra prendre la ref EW1043 prevu pour d’autre modèle de refrigerateur Dometic mais compatible sauf la plaque noir de dessus.

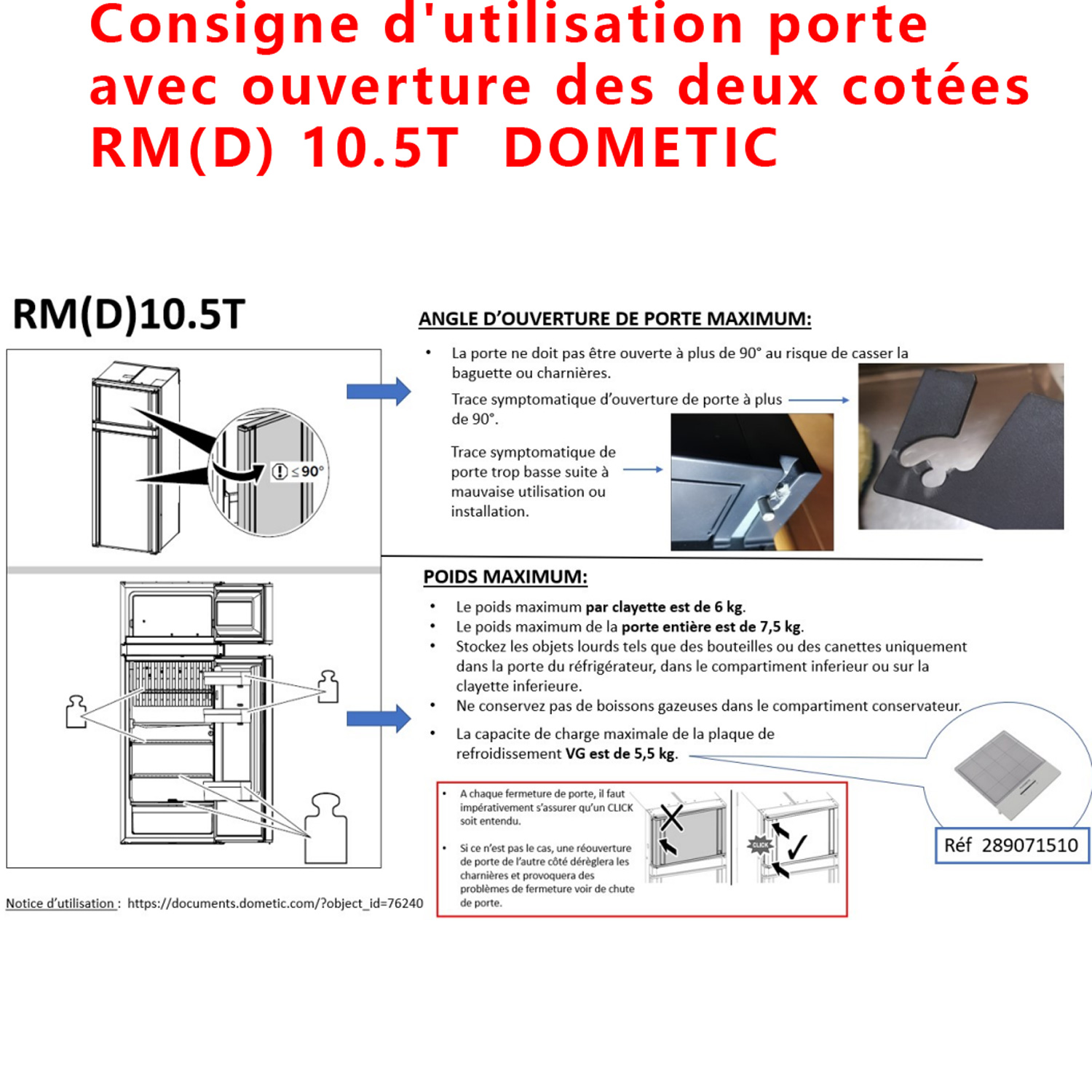

Pour éviter d’endommager le bon fonctionnement de la porte qui s’ouvre dans les deux sens.

Il faut respecter les trois points suivants :

• La porte ne doit pas être ouverte à plus de 90 °C.
• La porte ne doit pas être charger à plus de 7,5 kg dans la totalité des balconnets.
• À chaque fermeture de porte, un click (petit bruit) doit indiquer sa bonne fermeture.

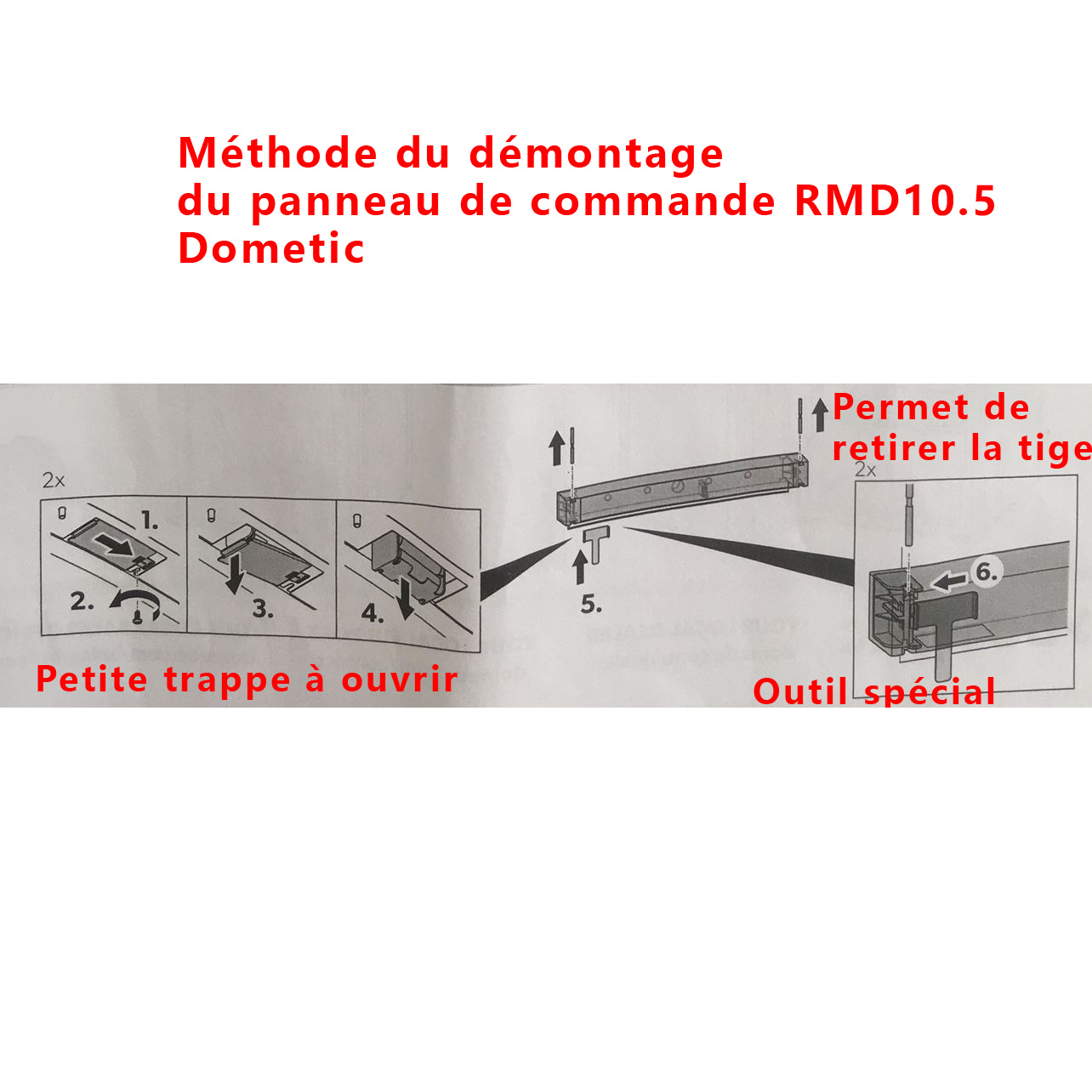

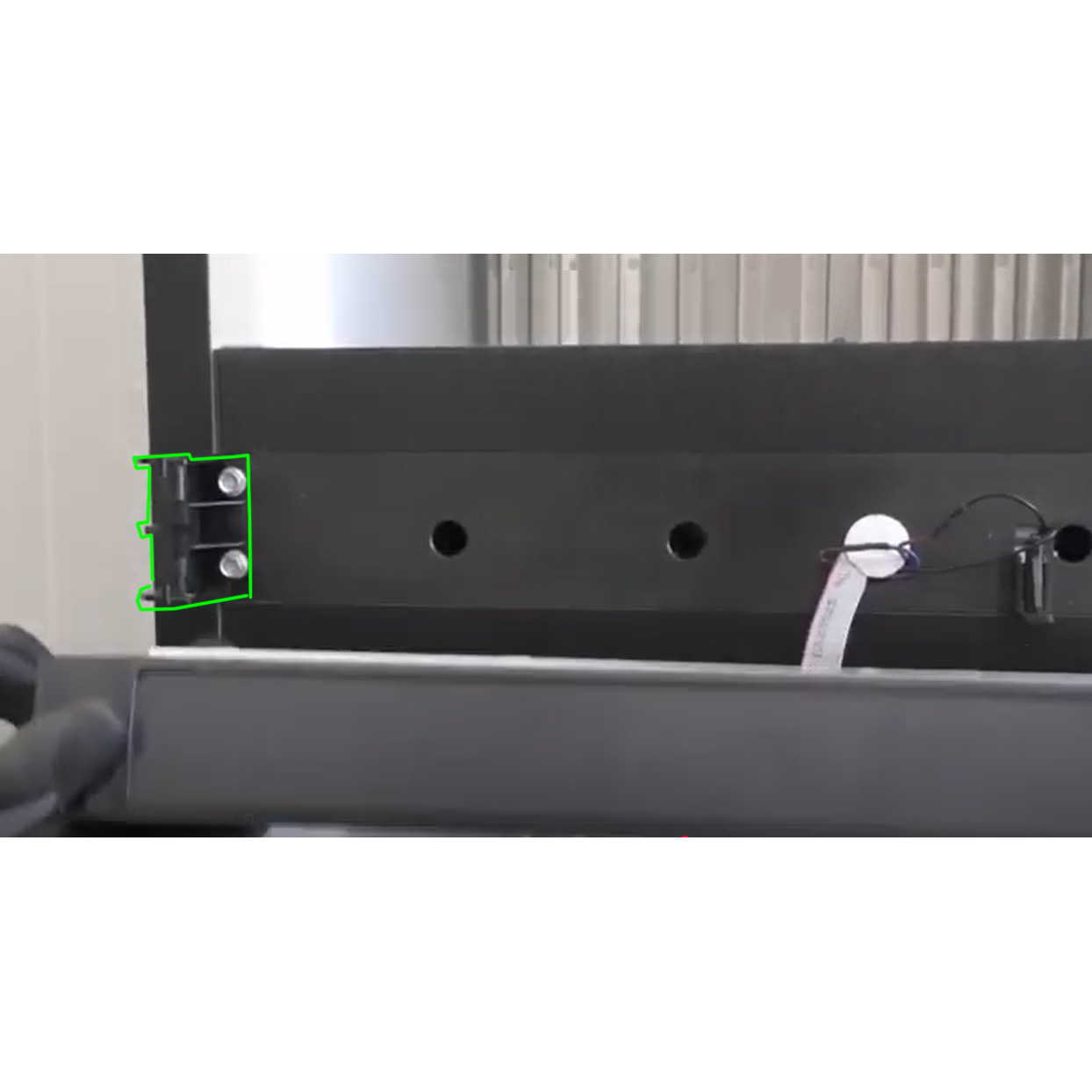

Vidéo de demontage du panneau de commande

[youtube https://www.youtube.com/watch?v=6X7AAewMXUM?version=3&rel=1&showsearch=0&showinfo=1&iv_load_policy=1&fs=1&hl=fr-FR&autohide=2&wmode=transparent&w=560&h=315]

Réf: EW1080

Pour vérifier si votre refrigerateur comporte bien cette charniere, merci de nous contacter et munissez vous pour vérifier la compatibilité de votre numéro de produit de votre appareil Dometic (qui se trouve sur l’étiquette signalétique ).

Compatible pour les appareils suivants :

n° Produit Nom du produit

921074241 RCD10.5T
921074297 RCD10.5XS
921074270 RCD10.5XT
921074264 RCD10.5XT
921074276 RCD10.5XT
921074279 RCD10.5XT
921074342 RCD10.5XT
921074343 RCD10.5XT
921219208 RMD10.5
921219209 RMD10.5
921074254 RMD10.5
921074304 RMD10.5
921074305 RMD10.5
921074306 RMD10.5
921132816 RMD10.5
921074179 RMD10.5
921074217 RMD10.5
921074301 RMD10.5
921074302 RMD10.5
921074302 RMD10.5
921074303 RMD10.5
921074326 RMD10.5
921074327 RMD10.5
921132817 RMD10.5
921132828 RMD10.5
921132845 RMD10.5
921132903 RMD10.5
921219219 RMD10.5S
921219228 RMD10.5S
921219202 RMD10.5S
921074226 RMD10.5S
921074227 RMD10.5S
921074236 RMD10.5S
921074269 RMD10.5S
921074273 RMD10.5S
921074285 RMD10.5S
921074289 RMD10.5S
921074290 RMD10.5S
921219214 RMD10.5S
921219204 RMD10.5T
921219206 RMD10.5T
921219238 RMD10.5T
921219221 RMD10.5T
921219227 RMD10.5T
921219239 RMD10.5T
921219220 RMD10.5T
921219223 RMD10.5T
921074181 RMD10.5T
921074185 RMD10.5T
921074213 RMD10.5T
921074245 RMD10.5T
921074267 RMD10.5T
921132830 RMD10.5T
921132956 RMD10.5T
921074169 RMD10.5T
921074198 RMD10.5T
921074205 RMD10.5T
921074207 RMD10.5T
921074208 RMD10.5T
921074209 RMD10.5T
921074256 RMD10.5T
921074258 RMD10.5T
921074263 RMD10.5T
921132818 RMD10.5T
921132824 RMD10.5T
921132826 RMD10.5T
921132827 RMD10.5T
921132829 RMD10.5T
921132840 RMD10.5T
921132846 RMD10.5T
921132851 RMD10.5T
921132901 RMD10.5T
921132907 RMD10.5T
921132931 RMD10.5T
921132935 RMD10.5T
921132936 RMD10.5T
921219201 RMD10.5X
921219211 RMD10.5X
921219213 RMD10.5X
921074321 RMD10.5X
921074324 RMD10.5X
921074180 RMD10.5X
921074216 RMD10.5X
921074219 RMD10.5X
921074247 RMD10.5X
921074248 RMD10.5X
921074322 RMD10.5X
921074323 RMD10.5X
921074325 RMD10.5X
921074329 RMD10.5X
921074330 RMD10.5X
921074331 RMD10.5X
921074335 RMD10.5X
921132740 RMD10.5X
921132815 RMD10.5X
921132820 RMD10.5X
921132823 RMD10.5X
921132904 RMD10.5X
921132924 RMD10.5X
921132971 RMD10.5X
921132975 RMD10.5X
921219215 RMD10.5XS
921219225 RMD10.5XS
921219224 RMD10.5XS
921219229 RMD10.5XS
921074232 RMD10.5XS
921074284 RMD10.5XS
921074287 RMD10.5XS
921074294 RMD10.5XS
921074295 RMD10.5XS
921219203 RMD10.5XT
921219218 RMD10.5XT
921219241 RMD10.5XT
921219217 RMD10.5XT
921219212 RMD10.5XT
921219205 RMD10.5XT
921219216 RMD10.5XT
921219240 RMD10.5XT
921219230 RMD10.5XT
921074192 RMD10.5XT
921074246 RMD10.5XT
921132942 RMD10.5XT
921074190 RMD10.5XT
921074199 RMD10.5XT
921074210 RMD10.5XT
921074224 RMD10.5XT
921074230 RMD10.5XT
921074231 RMD10.5XT
921074261 RMD10.5XT
921074293 RMD10.5XT
921074337 RMD10.5XT
921132709 RMD10.5XT
921132776 RMD10.5XT
921132813 RMD10.5XT
921132814 RMD10.5XT
921132819 RMD10.5XT
921132821 RMD10.5XT
921132822 RMD10.5XT
921132825 RMD10.5XT
921132831 RMD10.5XT
921132832 RMD10.5XT
921132839 RMD10.5XT
921132894 RMD10.5XT
921132895 RMD10.5XT
921132898 RMD10.5XT
921132906 RMD10.5XT
921132913 RMD10.5XT
921132937 RMD10.5XT
921132938 RMD10.5XT
921132939 RMD10.5XT
921132962 RMD10.5XT
921132963 RMD10.5XT
921219236 RMD10.5XT
921074202 RMD10.5XT
921074314 RMDT10.5
921074316 RMDT10.5
921074312 RMDT10.5
921074313 RMDT10.5
921074315 RMDT10.5
921074317 RMDT10.5
921219237 RMDT10.5T
921219210 RMDT10.5T
921219207 RMDT10.5T
921219251 RMDT10.5T
921219222 RMDT10.5T
921219231 RMDT10.5T
921074182 RMDT10.5T
921074214 RMDT10.5T
921074255 RMDT10.5T
921074165 RMDT10.5T
921074170 RMDT10.5T
921074191 RMDT10.5T
921074200 RMDT10.5T
921074204 RMDT10.5T
921074215 RMDT10.5T
921074240 RMDT10.5T
921074242 RMDT10.5T
921074280 RMDT10.5T
921132909 RMDT10.5T
921132930 RMDT10.5T
921132970 RMDT10.5T
921219250 RMDT10.5T
921074310 RMDT10.5X
921074311 RMDT10.5X
921074307 RMDT10.5X
921074308 RMDT10.5X
921074309 RMDT10.5X
921074333 RMDT10.5X
921219242 RMDT10.5XT
921219243 RMDT10.5XT
921219244 RMDT10.5XT
921219245 RMDT10.5XT
921219246 RMDT10.5XT
921074257 RMDT10.5XT
921074268 RMDT10.5XT
921074171 RMDT10.5XT
921074186 RMDT10.5XT
921074188 RMDT10.5XT
921074201 RMDT10.5XT
921074218 RMDT10.5XT
921074223 RMDT10.5XT
921074239 RMDT10.5XT
921074283 RMDT10.5XT
921132908 RMDT10.5XT
921132910 RMDT10.5XT
921132923 RMDT10.5XT
921219252 RMDT10.5XT
