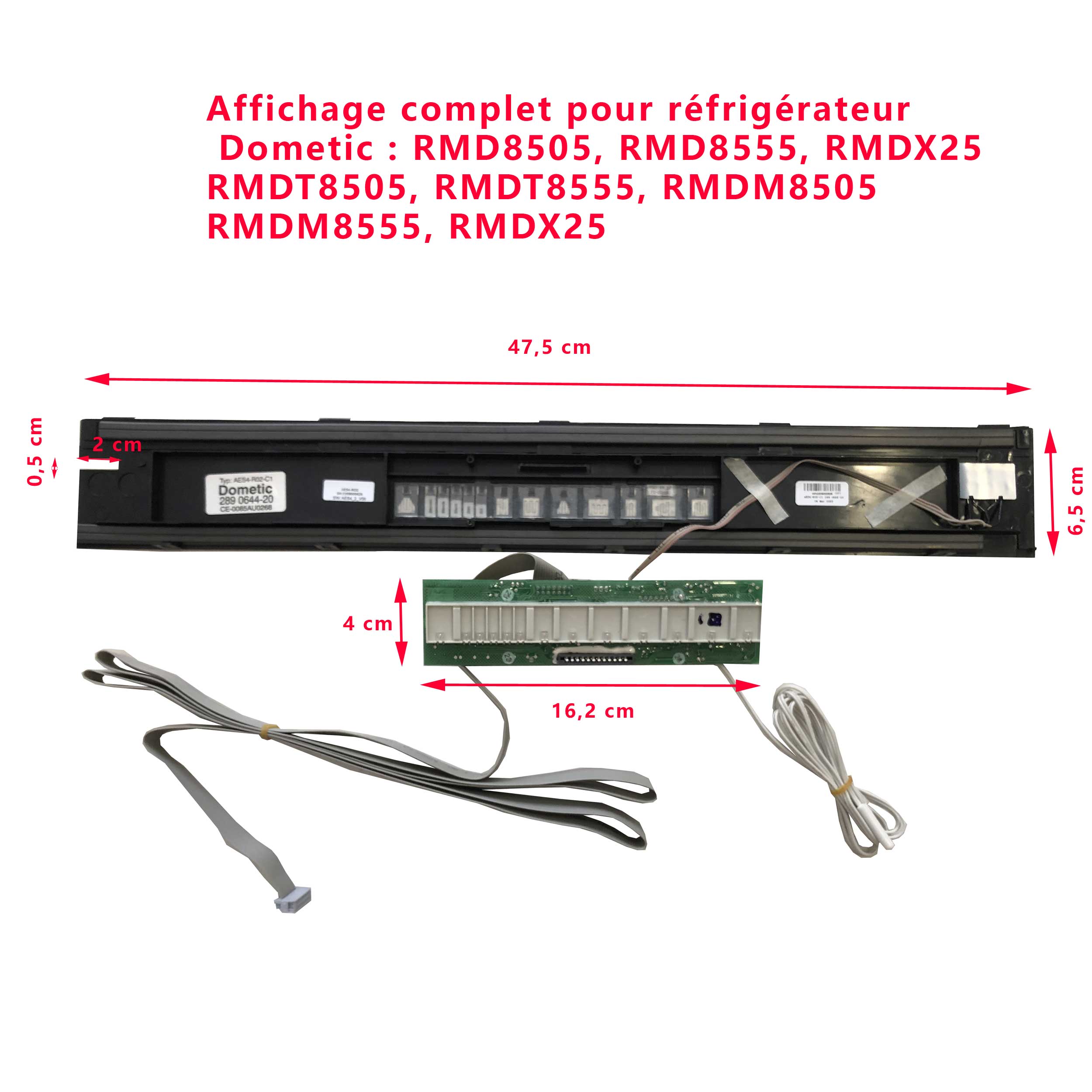

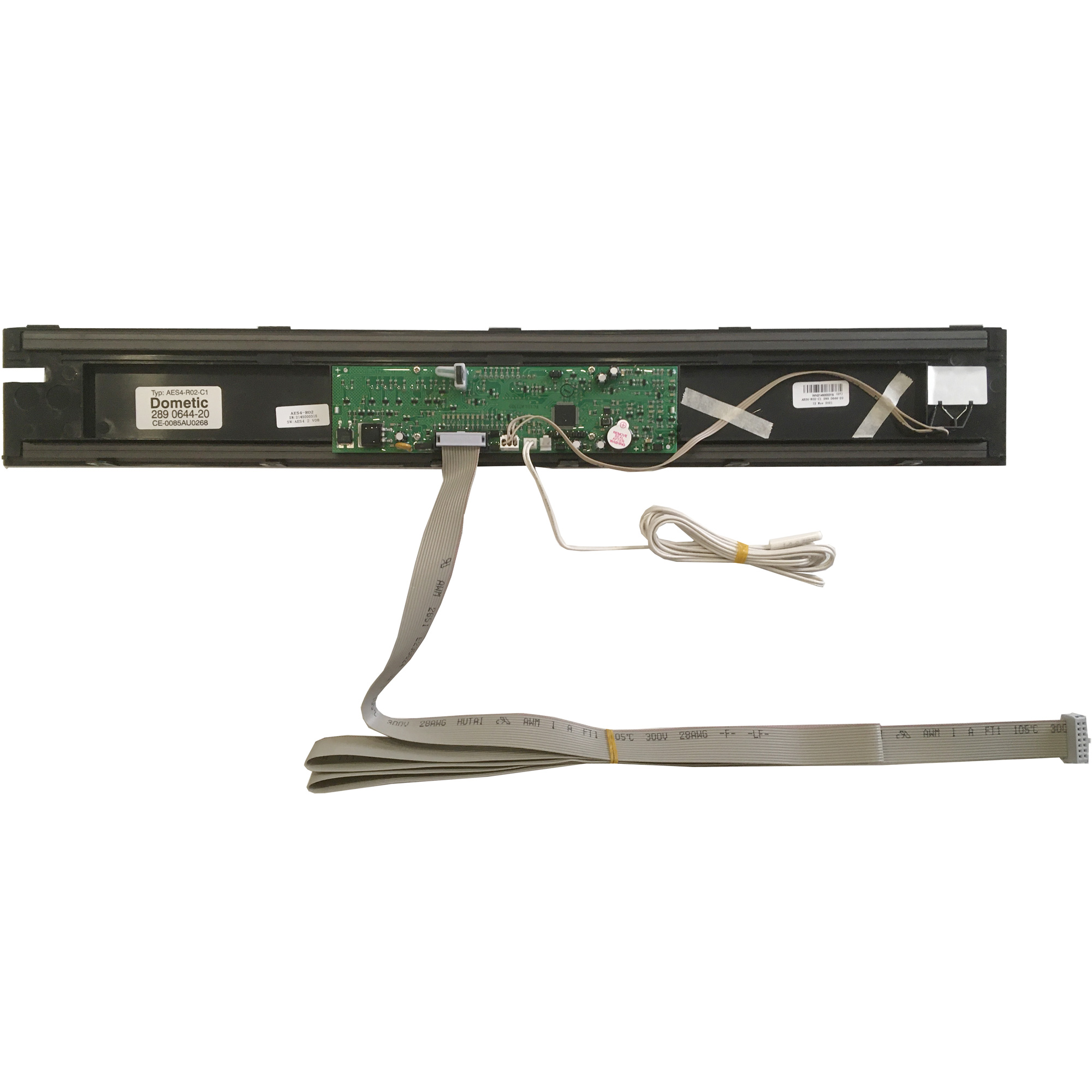

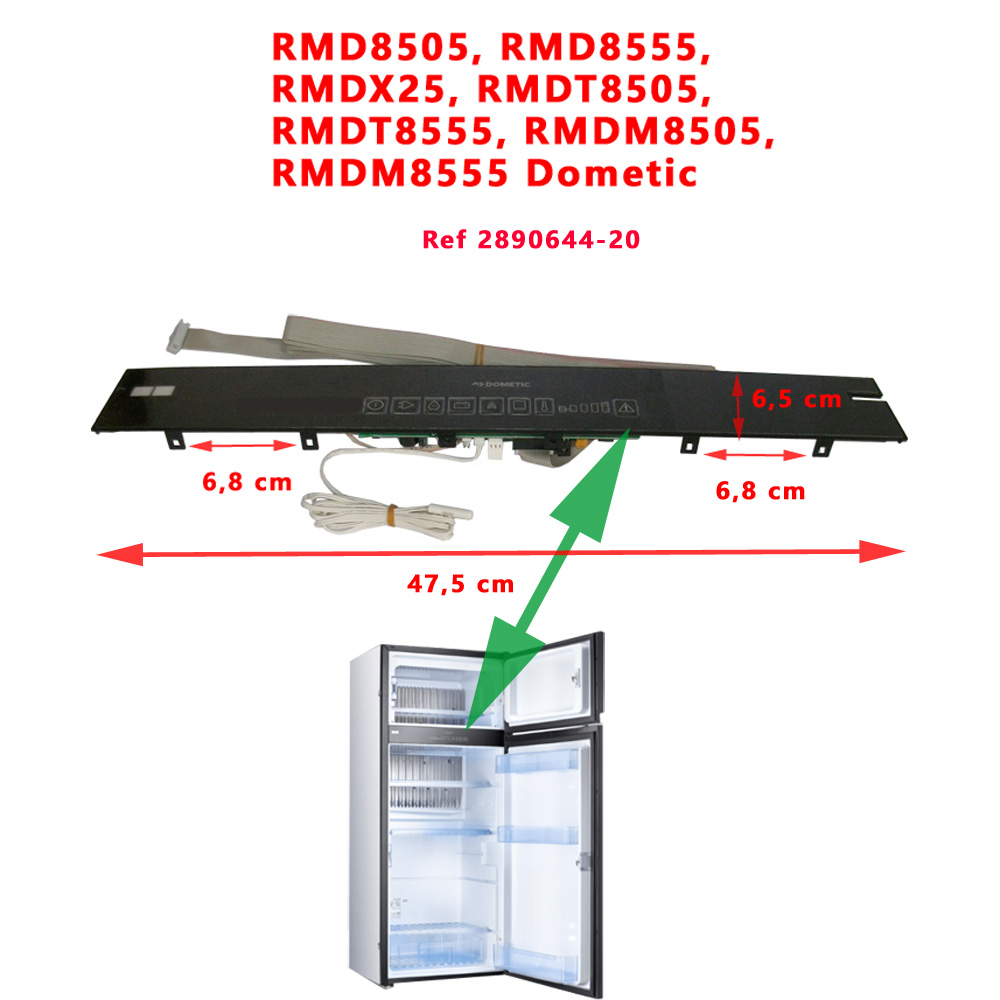

Affichage complet porte DROITE pour réfrigérateur 2890644-20 RMD8505, RMD8555, RMDX25, RMDT8505, RMDT8555, RMDM8505, RMDM8555 porte droite par Dometic

Affichage complet pour réfrigérateur RMD8505, RMD8555, RDX25, RMDT8505, RMDT8555… porte DROITE par Dometic

les anciennes références de pièces suivantes 289018520, 289044520 et 289050820 ont été remplacé par 289064420.

(Si vous recherchez le meme panneau de commande mais dont la porte du refrigerateur comporte les charnieres à gauche, il faut prendre la ref EW392 porte GAUCHE ou cliquer sur cette ligne)

Compatible pour les appareils suivants :

• RMD8505
• RMD8555
• RMDX25
• RMDT8505
• RMDT8555
• RMDM8505
• RMDM8555

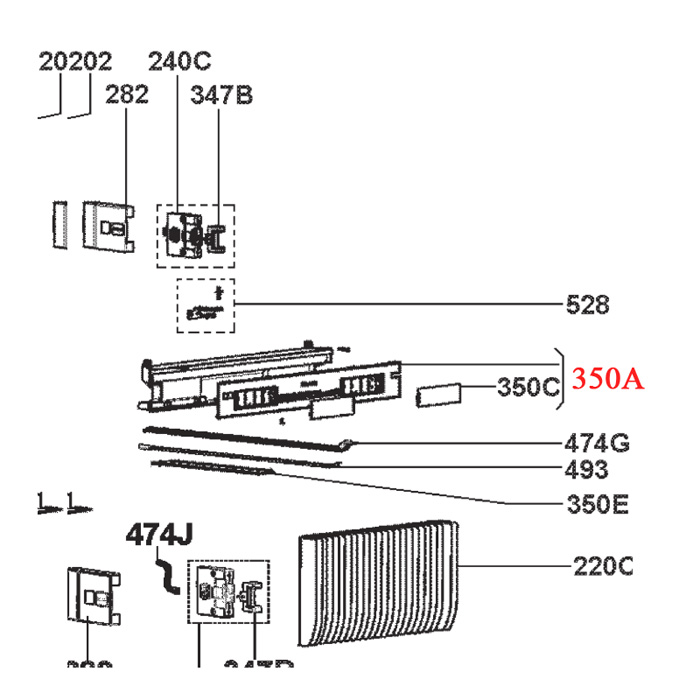

Repère numéro 350A sur la vue éclatée. l’article comporte comme sur les photos : la sonde, l’electronique, la nappe (mais ne comporte pas les vis de fixation).

Voici le mode d’emploi du RMD8505 ou RMD8555 cliquer sur ce lien

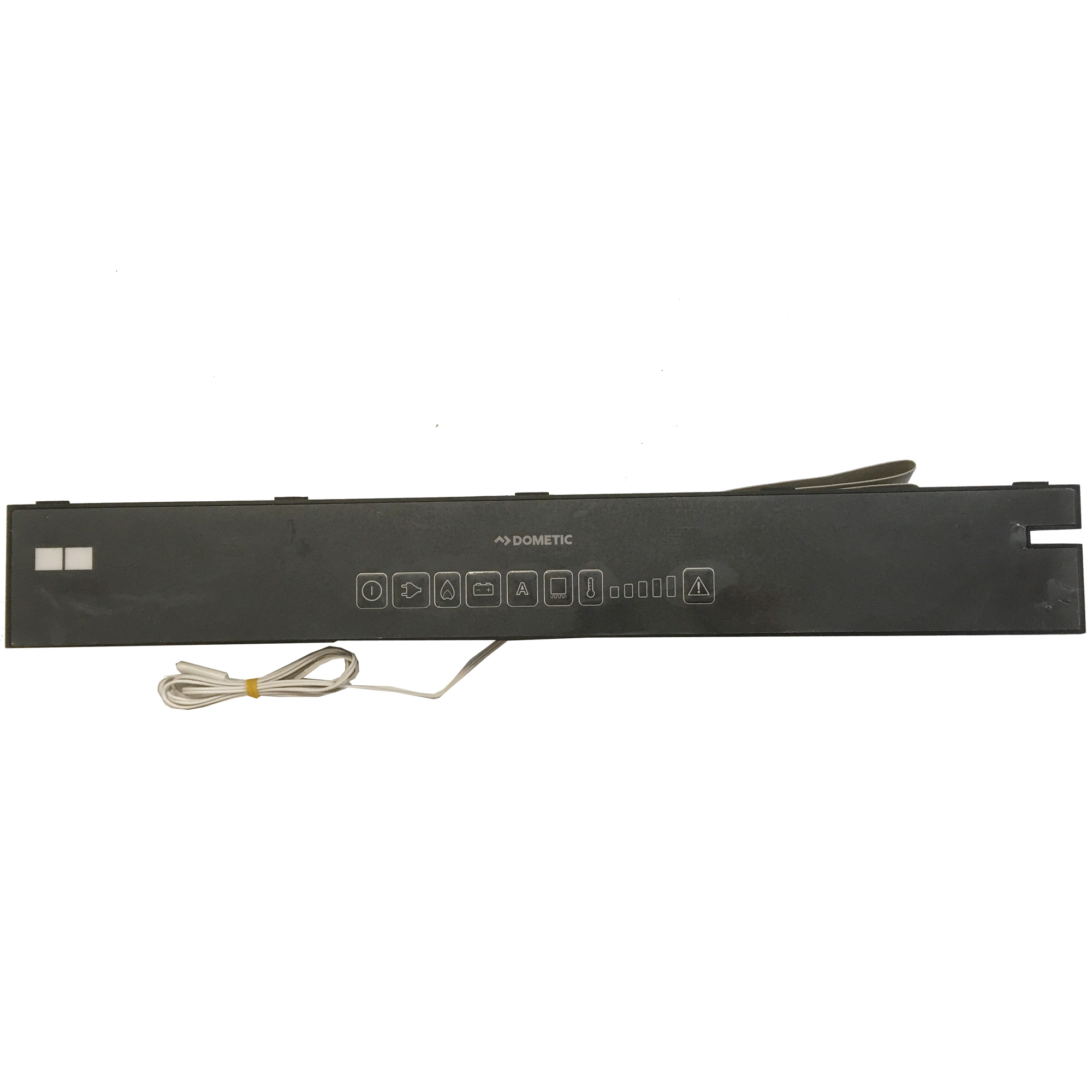

Notion d’utilisation du panneau de commande en mode Automatique AES pour les modèles RMD85X5  :

Touche MARCHE/ARRÊT
Touche de sélection énergie 230V ~
Touche de sélection énergie GAZ
Touche de sélection énergie 12V =
Touche de sélection ‘AUTOMATIQUE’
Touche de chauffage du cadre
Touche seuil de température
Affichage des seuils de température
DEL Panne / Touche de réinitialisation
PANNE GAZ

Allumer/Eteindre
– Allumer avec touche (1), appuyer 2 s
– Eteindre avec touche (1), appuyer > 2 s

Mode manuel
– Sélection du type d’énergie avec touche (2, 3, 4)
– Régler les seuils de température avec touche (6)

Mode automatique
– Commutation sur ” Automatique ” avec touche (5)
Sélection automatique de l’énergie (selon la disponibilité) :
1.) solaire (12V =)
2.) 230V ~
3.) 12V =
4.) Gaz liquéfié
– Régler les seuils de température avec touche (7)

Autre element important :
4.7.4 Arrêt en station essence pendant l’utilisation au mode automatique : AES

Afin d’éviter un changement automatique vers l’alimentation au gaz lorsque le véhicule est arrêté en station essence, le système électronique ne passe à l’alimentation au gaz qu’après 15 minutes d’arrêt du moteur.
Pendant ce temps, l’appareil est en mode attente (stand-by). Les DEL de seuil de température ne sont alors pas allumés alors que tous les autres affichages restent allumés.

Dans les stations essence, l’utilisation d’appareils à flamme est interdite.  Si l’arrêt à la station essence dure plus de 15 min, le réfrigérateur doit être éteint ou réglé sur une autre source d’énergie.

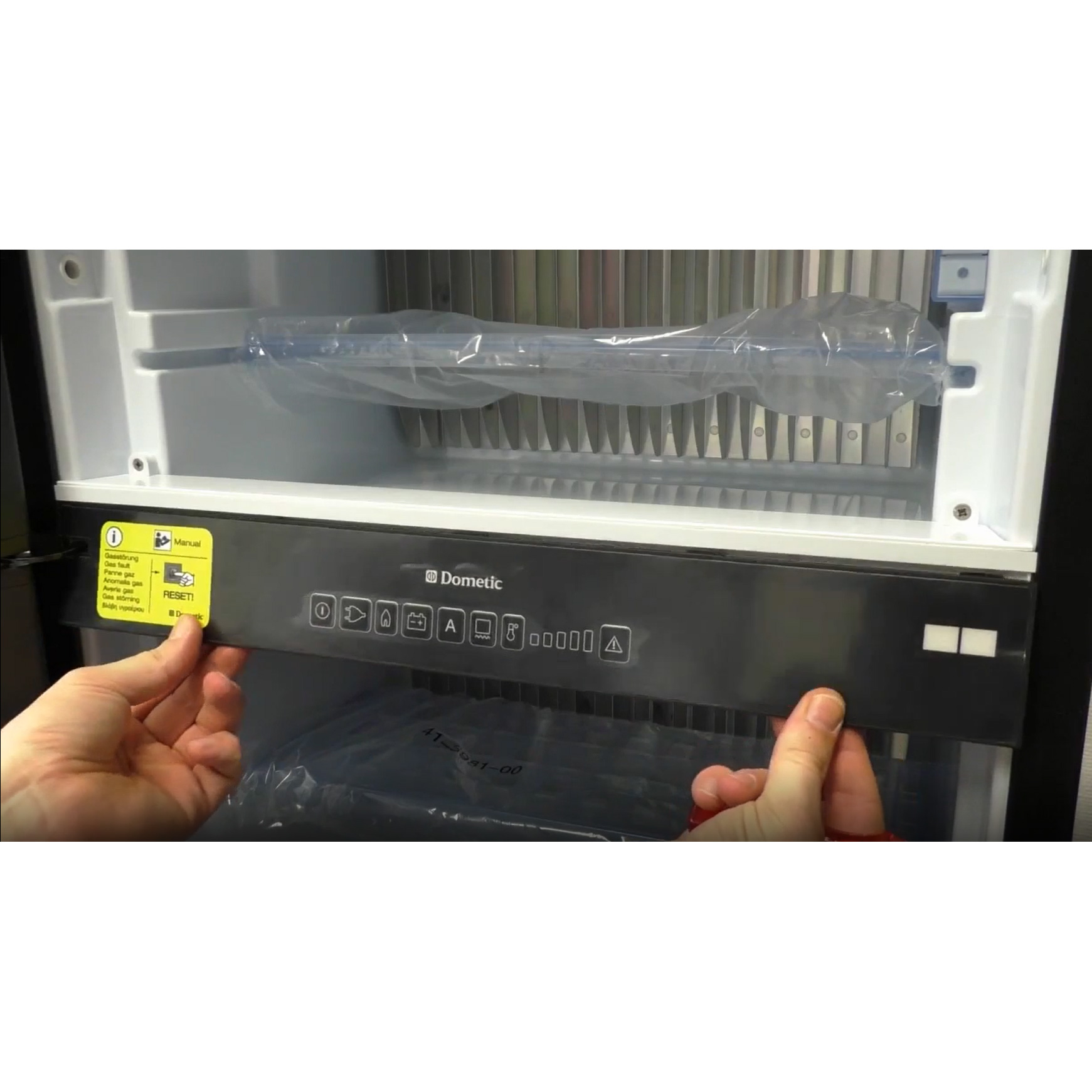

Voici la methode de remplacement du panneau de controle des RMDX8XX1 et RMDX8XX5 Dometic
[youtube https://www.youtube.com/watch?v=Krd5zd0YqgM?version=3&rel=1&showsearch=0&showinfo=1&iv_load_policy=1&fs=1&hl=fr-FR&autohide=2&wmode=transparent&w=1020&h=574]



(ref dometicparts : 289018520 qui es remplacé par 289064420)

Voici la méthode pour la réinitialisation de l’alimentation gaz sur le panneau de commande en défaut :

[youtube https://www.youtube.com/watch?v=-IOnp0mZMpo?version=3&rel=1&showsearch=0&showinfo=1&iv_load_policy=1&fs=1&hl=fr-FR&autohide=2&wmode=transparent&w=1020&h=574]
